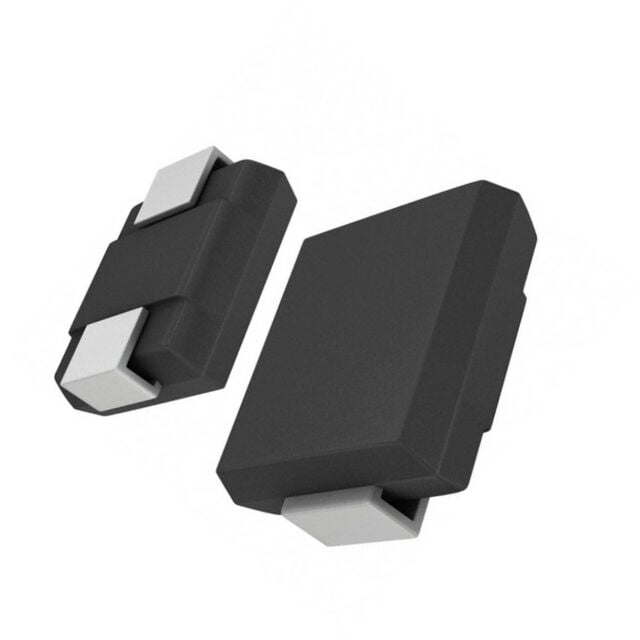

SS520
Shenzhen Slkormicro Semicon Co., Ltd.
Package: Cut Tape (CT)
Description: 200V 950MV@5A 5A SMA(DO-214AC)
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | DO-214AC, SMA |
| Capacitance @ Vr, F | 350pF @ 4V, 1MHz |
| Supplier Device Package | DO-214AC (SMA) |
| Current - Reverse Leakage @ Vr | 1 mA @ 200 V |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) | 5A |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 5 A |
