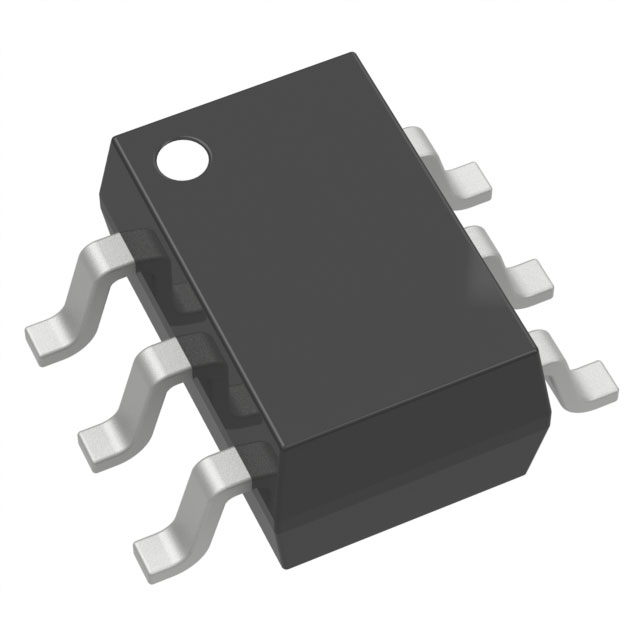

SIL2429HE3-TP
MCC (Micro Commercial Components)
Package: Tape & Reel (TR)
Description: MOSFET N/P-CH 20V 2A SOT23-6L
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | Automotive |
|---|---|
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Active |
| Power - Max | 670mW |
| Configuration | N and P-Channel |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | SOT-23-6 |
| Vgs(th) (Max) @ Id | 1.1V @ 250μA, 1V @ 250μA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 57mOhm @ 1A, 4.5V, 120mOhm @ 1A, 4.5V |
| Supplier Device Package | SOT-23-6L |
| Gate Charge (Qg) (Max) @ Vgs | 3.16nC @ 4.5V, 2.9nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 188pF @ 10V, 214pF @ 10V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta), 1.6A (Ta) |
