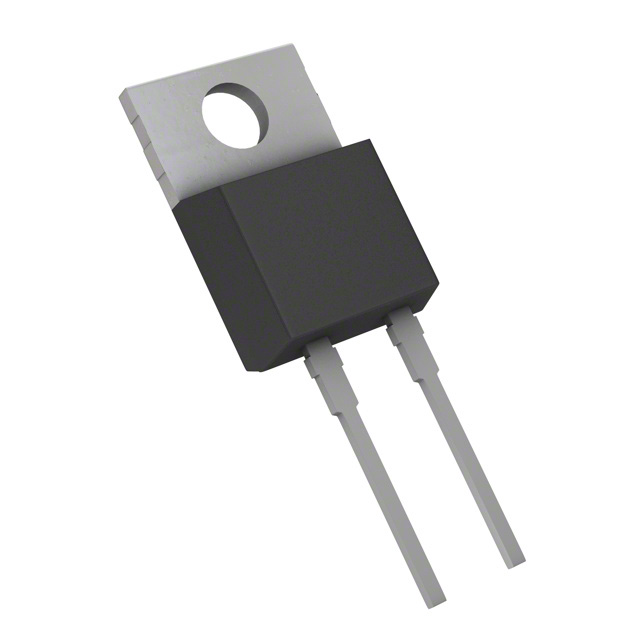

S5D10170A
SMC Diode Solutions
Package: Tube
Description: DIODE SCHOTTKY SILICON CARBIDES
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| Speed | No Recovery Time > 500mA (Io) |
| Technology | SiC (Silicon Carbide) Schottky |
| Part Status | Active |
| Mounting Type | Through Hole |
| Qualification | - |
| Package / Case | TO-220-2 |
| Capacitance @ Vr, F | 994pF @ 0V, 1MHz |
| Supplier Device Package | TO-220AC |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 20 μA @ 1700 V |
| Voltage - DC Reverse (Vr) (Max) | 1700 V |
| Current - Average Rectified (Io) | 44A |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 10 A |
