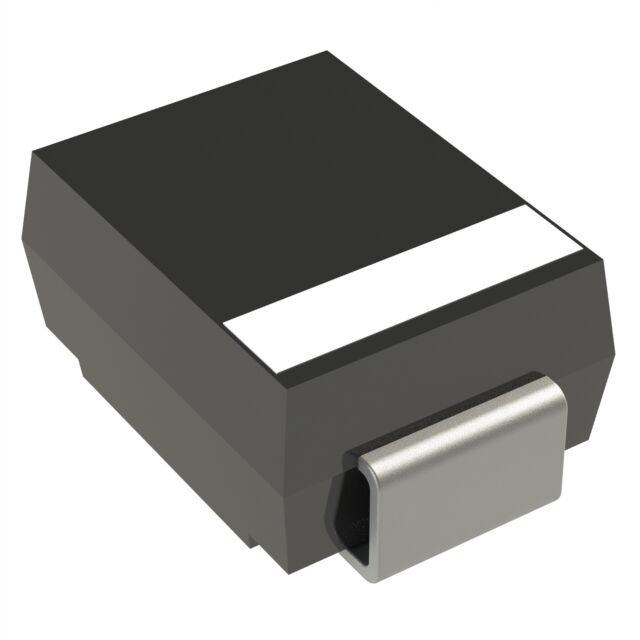

SL215B-TP
MCC (Micro Commercial Components)
Package: Tape & Reel (TR)
Description: IC
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | DO-214AA, SMB |
| Capacitance @ Vr, F | 310pF @ 4V, 1MHz |
| Supplier Device Package | DO-214AA (SMB) |
| Current - Reverse Leakage @ Vr | 10 mA @ 15 V |
| Voltage - DC Reverse (Vr) (Max) | 15 V |
| Current - Average Rectified (Io) | 2A |
| Operating Temperature - Junction | -55°C ~ 100°C |
| Voltage - Forward (Vf) (Max) @ If | 330 mV @ 2 A |
