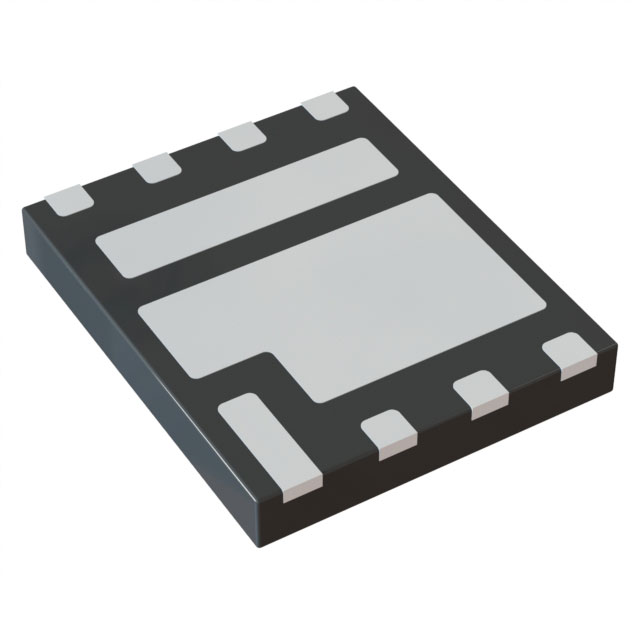

NTMFD001N03P9
onsemi
Package: Cut Tape (CT)
Description: MOSFET 2N-CH 30V 11A 8PQFN
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Active |
| Power - Max | 960mW (Ta), 25W (Tc), 1.04W (Ta), 41W (Tc) |
| Configuration | 2 N-Channel (Dual) Asymmetrical |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | 8-PowerWDFN |
| Vgs(th) (Max) @ Id | 3V @ 1mA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 5mOhm @ 17A, 10V, 1mOhm @ 40A, 10V |
| Supplier Device Package | 8-PQFN (5x6) |
| Gate Charge (Qg) (Max) @ Vgs | 7.9nC @ 4.5V, 43nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1224pF @ 15V, 6575pF @ 15V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta), 57A (Tc), 25A (Ta), 165A (Tc) |
