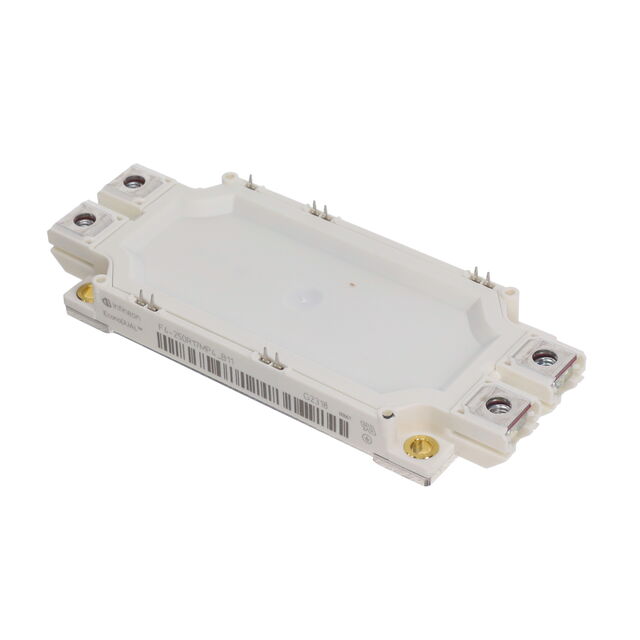

F4250R17MP4B11BPSA2
Infineon Technologies
Package: Tray
Description: MEDIUM POWER ECONO AG-ECONOD-311
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Input | Standard |
|---|---|
| IGBT Type | Trench Field Stop |
| Part Status | Active |
| Configuration | Full Bridge Inverter |
| Mounting Type | Chassis Mount |
| NTC Thermistor | No |
| Package / Case | Module |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | AG-ECONOD-6 |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 250A |
| Current - Collector (Ic) (Max) | 370 A |
| Input Capacitance (Cies) @ Vce | 21 nF @ 25 V |
| Current - Collector Cutoff (Max) | 3 mA |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
