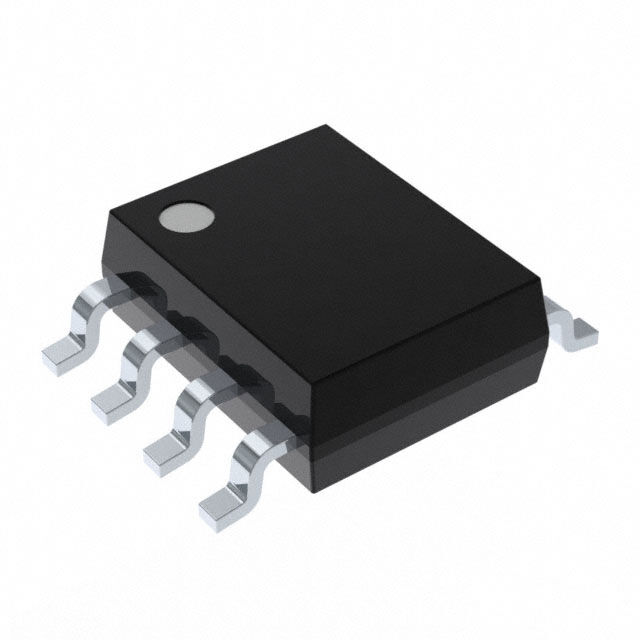

AM9926N
Analog Power Inc.
Package: Bulk
Description: MOSFET N-CH 20V 6.9A SO-8
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Active |
| Power - Max | 2.1W (Ta) |
| Configuration | 2 N-Channel (Dual) |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | PowerPAK? SO-8 |
| Vgs(th) (Max) @ Id | 1V @ 250μA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 4.8A, 4.5V |
| Supplier Device Package | 8-SO |
| Gate Charge (Qg) (Max) @ Vgs | 7nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 439pF @ 15V |
| Current - Continuous Drain (Id) @ 25°C | 6.9A (Ta) |
