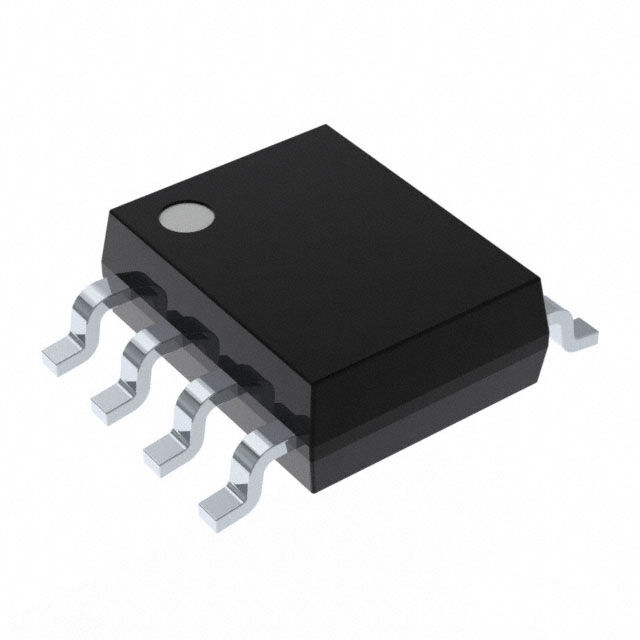

AM4541C
Analog Power Inc.
Package: Bulk
Description: MOSFET N/P-CH 40V 5.8A SOIC-8
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Power - Max | 2.1W (Ta) |
| Configuration | N and P-Channel |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | PowerPAK? SO-8 |
| Vgs(th) (Max) @ Id | 1V @ 250μA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 42mOhm @ 5.3A, 10V, 90mOhm @ 3.6A, 10V |
| Supplier Device Package | 8-SO |
| Gate Charge (Qg) (Max) @ Vgs | 3.6nC @ 10V, 5.8nC @ 10V |
| Drain to Source Voltage (Vdss) | 40V |
| Input Capacitance (Ciss) (Max) @ Vds | 287pF @ 15V, 384pF @ 15V |
| Current - Continuous Drain (Id) @ 25°C | 5.8A (Ta), 3.9A (Ta) |
