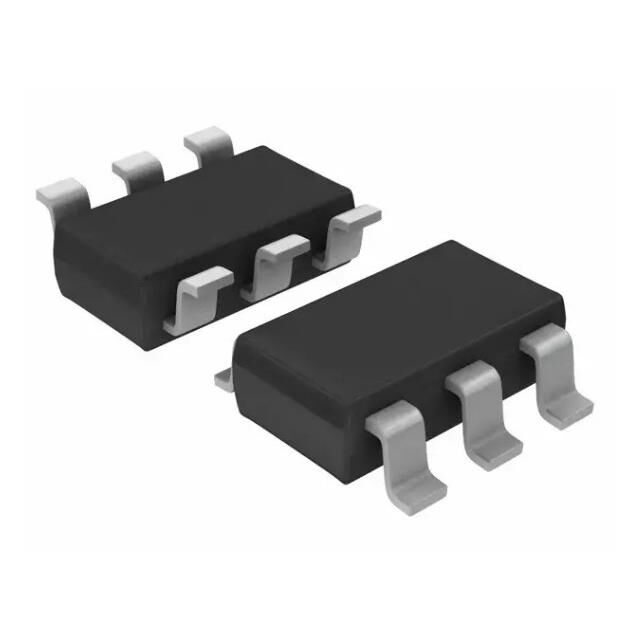

AM3531C
Analog Power Inc.
Package: Bulk
Description: MOSFET N/P-CH 30V TSOP-6
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Active |
| Power - Max | 1.15W (Ta) |
| Configuration | N and P-Channel |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Vgs(th) (Max) @ Id | 500mV @ 250μA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 58mOhm @ 2A, 4.5V, 112mOhm @ 2A, 4.5V |
| Supplier Device Package | 6-TSOP |
| Gate Charge (Qg) (Max) @ Vgs | 8.7nC @ 4.5V, 9.3nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 30V |
| Input Capacitance (Ciss) (Max) @ Vds | 641pF @ 15V, 630pF @ 15V |
| Current - Continuous Drain (Id) @ 25°C | 3.7A (Ta), 2.7A (Ta) |
