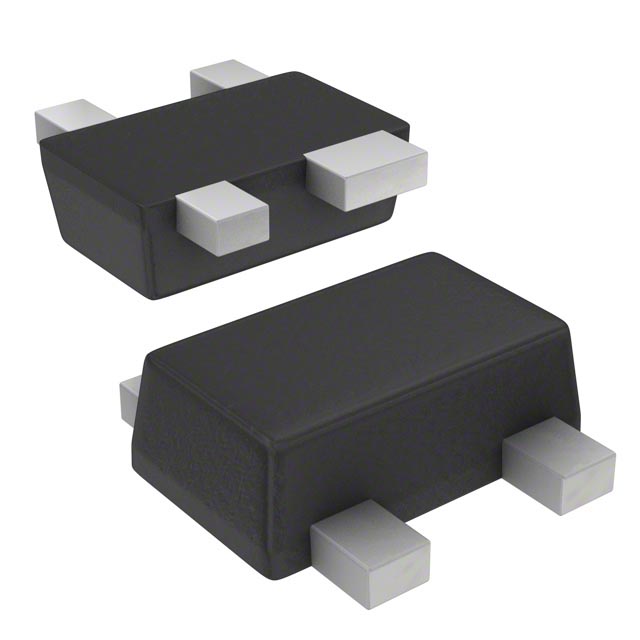

2SC5754-T2-A
CEL
Package: Tape & Reel (TR)
Description: RF TRANS NPN 5V 20GHZ SOT-343F
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Gain | 6.5dB |
|---|---|
| Part Status | Obsolete |
| Power - Max | 735mW |
| Mounting Type | Surface Mount |
| Package / Case | SOT-343F |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Frequency - Transition | 20GHz |
| Supplier Device Package | SOT-343F |
| Noise Figure (dB Typ @ f) | - |
| Current - Collector (Ic) (Max) | 500mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 100mA, 3V |
| Voltage - Collector Emitter Breakdown (Max) | 5V |
