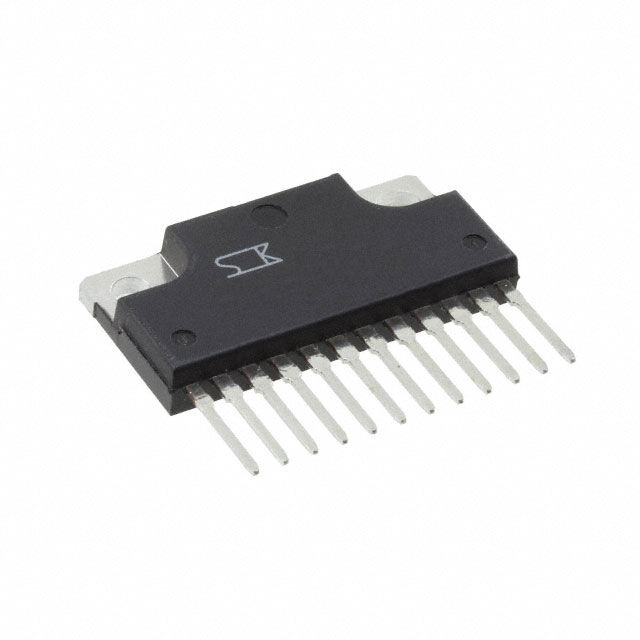

SLA0201
Sanken Electric USA Inc.
Package: Bulk
Description: THYRISTOR ARRAY SIP
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| SCR Type | Standard Recovery |
|---|---|
| Part Status | Obsolete |
| Mounting Type | Through Hole |
| Package / Case | 12-SIP Exposed Tab |
| Voltage - Off State | 600 V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Supplier Device Package | 12-SIP |
| Current - Hold (Ih) (Max) | 4 mA |
| Current - Off State (Max) | 2 mA |
| Voltage - On State (Vtm) (Max) | 1.4 V |
| Current - Gate Trigger (Igt) (Max) | 200 μA |
| Current - On State (It (AV)) (Max) | 5 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - On State (It (RMS)) (Max) | 7.8 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 60A @ 50Hz |
