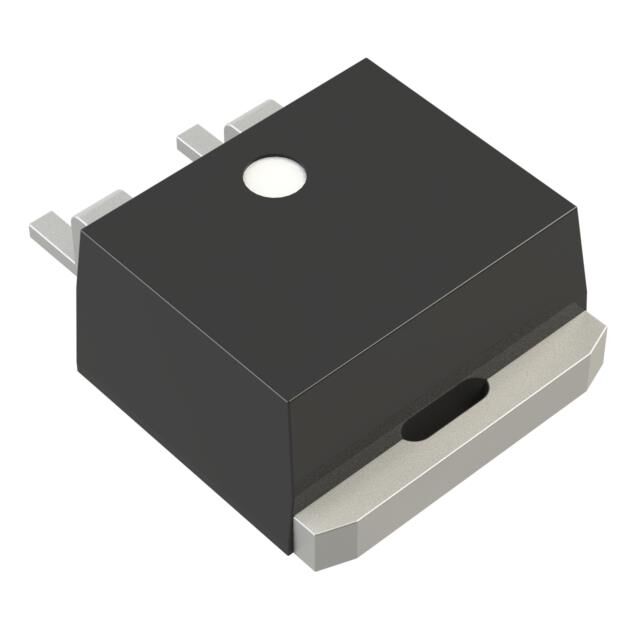

PSC2065J-QJ
Nexperia USA Inc.
Package: Tube
Description: PSC2065J-Q/SOT8018/TO263-2L
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | Automotive |
|---|---|
| Speed | No Recovery Time > 500mA (Io) |
| Technology | SiC (Silicon Carbide) Schottky |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), Variant |
| Capacitance @ Vr, F | 680pF @ 1V, 1MHz |
| Supplier Device Package | D2PAK R2P |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 180 μA @ 650 V |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Current - Average Rectified (Io) | 20A |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 20 A |
