HS1YB
Taiwan Semiconductor Corporation
Package: Cut Tape (CT)
Description: 75NS, 1A, 1600V, HIGH EFFICIENT
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Qualification | - |

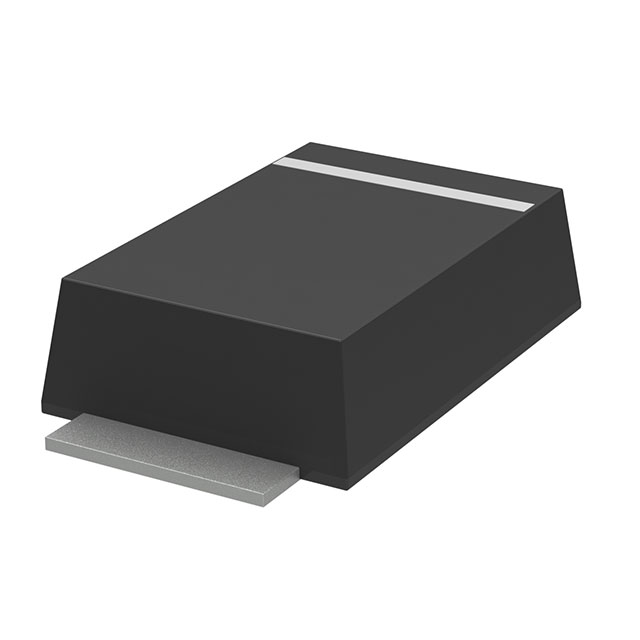

| Package / Case | DO-214AA, SMB |
| Capacitance @ Vr, F | - |
| Supplier Device Package | DO-214AA (SMB) |
| Reverse Recovery Time (trr) | 75 ns |
| Current - Reverse Leakage @ Vr | 5 μA @ 1600 V |
| Voltage - DC Reverse (Vr) (Max) | 1600 V |
| Current - Average Rectified (Io) | 1A |
| Operating Temperature - Junction | 150°C |
| Voltage - Forward (Vf) (Max) @ If | 2.38 V @ 1 A |
