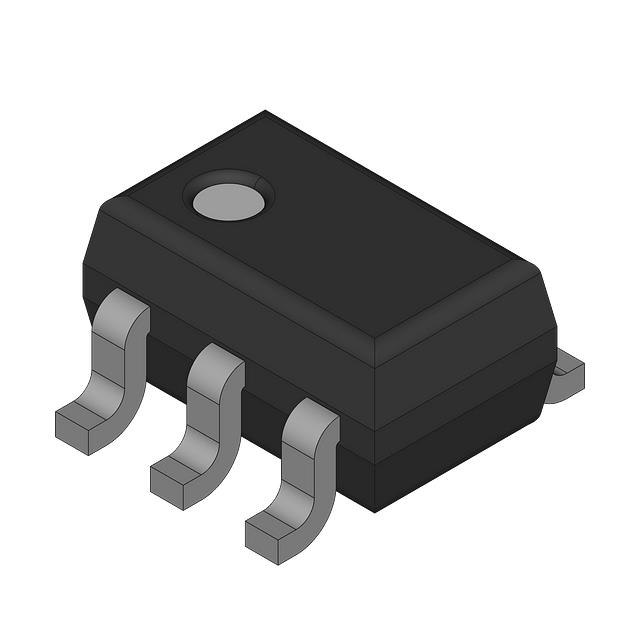

FH102A-TR-E
onsemi
Package: Bulk
Description: RF TRANS 2 NPN 10V 7GHZ 6-MCP
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Gain | 12dB |
|---|---|
| Part Status | Obsolete |
| Power - Max | 500mW |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Transistor Type | 2 NPN (Dual) |
| Operating Temperature | 150°C (TJ) |
| Frequency - Transition | 7GHz |
| Supplier Device Package | 6-MCP |
| Noise Figure (dB Typ @ f) | 1dB @ 1GHz |
| Current - Collector (Ic) (Max) | 70mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 90 @ 20mA, 5V |
| Voltage - Collector Emitter Breakdown (Max) | 10V |
