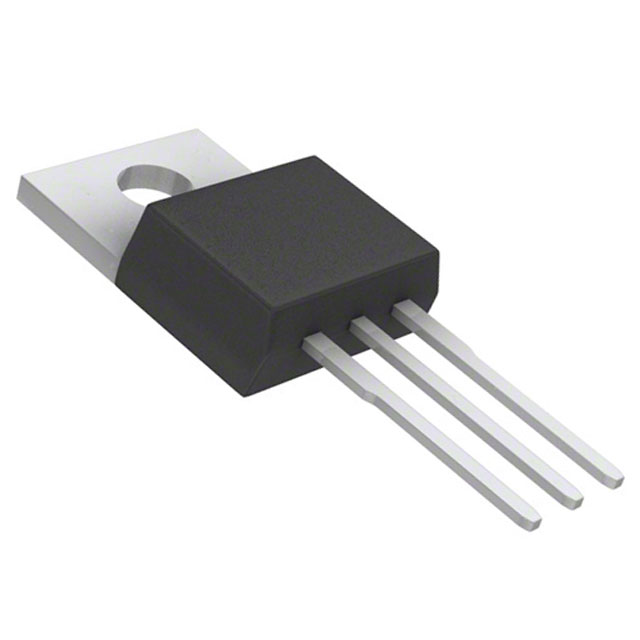

WN3S20150CTQ
WeEn Semiconductors
Package: Tube
Description: DIODE ARR SCHOT 150V 10A TO220AB
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Part Status | Active |
| Mounting Type | Through Hole |
| Qualification | - |
| Package / Case | TO-220-3 |
| Diode Configuration | 1 Pair Common Cathode |
| Supplier Device Package | TO-220AB |
| Current - Reverse Leakage @ Vr | 5 μA @ 150 V |
| Voltage - DC Reverse (Vr) (Max) | 150 V |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Voltage - Forward (Vf) (Max) @ If | 930 mV @ 10 A |
| Current - Average Rectified (Io) (per Diode) | 10A |
