TQM2N7002DCU6 RFG
Taiwan Semiconductor Corporation
Package: Cut Tape (CT)
Description: 60V, 0.26A, DUAL N-CHANNEL SMALL
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | Automotive |
|---|---|
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Active |
| Power - Max | 376mW (Ta) |
| Configuration | 2 N-Channel (Dual) |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |

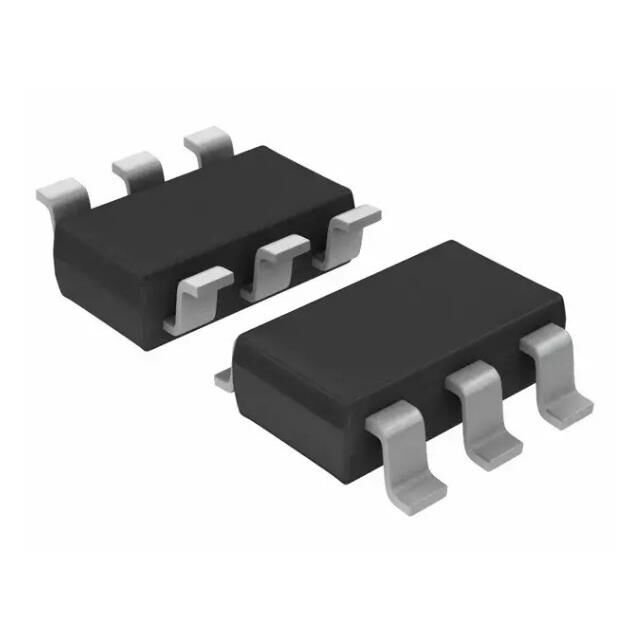

| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Vgs(th) (Max) @ Id | 2.5V @ 250μA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 3Ohm @ 260mA, 10V |
| Supplier Device Package | SOT-363 |
| Gate Charge (Qg) (Max) @ Vgs | 1.7nC @ 10V |
| Drain to Source Voltage (Vdss) | 60V |
| Input Capacitance (Ciss) (Max) @ Vds | 35pF @ 30V |
| Current - Continuous Drain (Id) @ 25°C | 260mA (Ta) |
