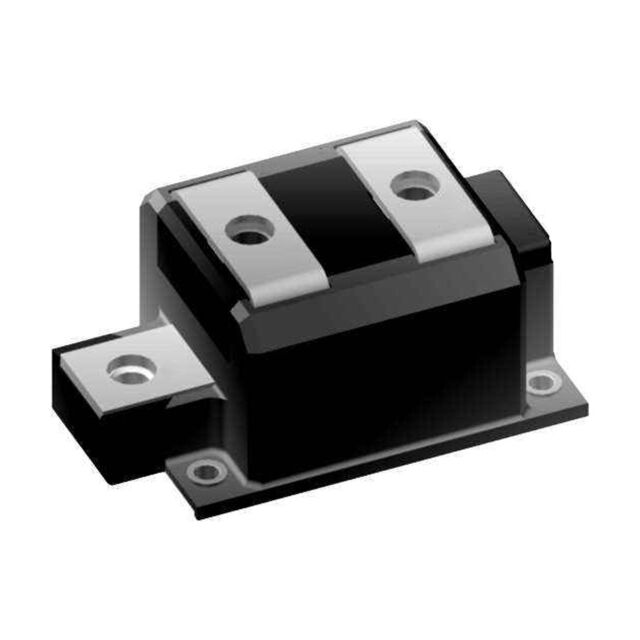

STT1900N18P55XPSA1
Infineon Technologies
Package: Tray
Description: SCR MODULE 1.8KV MODULE
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Structure | 1-Phase Controller - All SCRs |
|---|---|
| Part Status | Active |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Voltage - Off State | 1.8 kV |
| Operating Temperature | 125°C (TJ) |
| Number of SCRs, Diodes | 2 SCRs |
| Current - Hold (Ih) (Max) | 300 mA |
| Current - Gate Trigger (Igt) (Max) | 200 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 17000A @ 50Hz |
