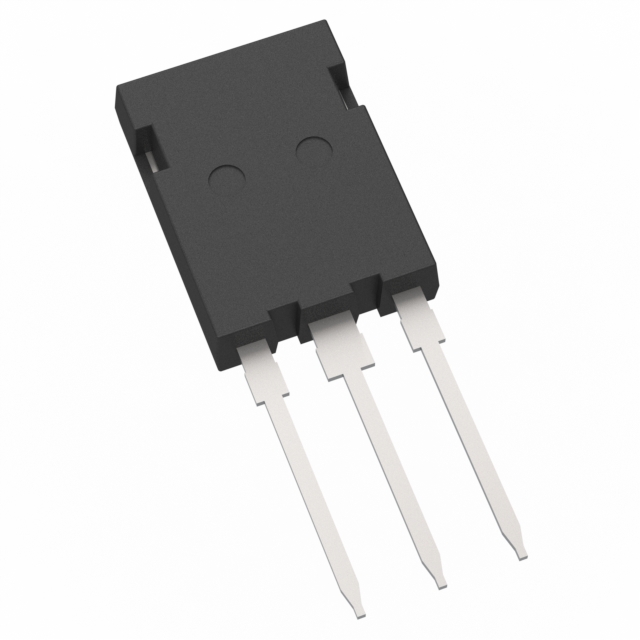

STGYA75H120DF2
STMicroelectronics
Package: Tube
Description: IGBT TRENCH FS 1200V 150A TO-247
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| IGBT Type | Trench Field Stop |
|---|---|
| Input Type | Standard |
| Gate Charge | 313 nC |
| Part Status | Active |
| Power - Max | 750 W |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Test Condition | 600V, 75A, 10Ohm, 15V |
| Switching Energy | 4.3mJ (on), 3.9mJ (off) |
| Td (on/off) @ 25°C | 61ns/366ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Supplier Device Package | TO-247 |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 75A |
| Reverse Recovery Time (trr) | 356 ns |
| Current - Collector (Ic) (Max) | 150 A |
| Current - Collector Pulsed (Icm) | 300 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
