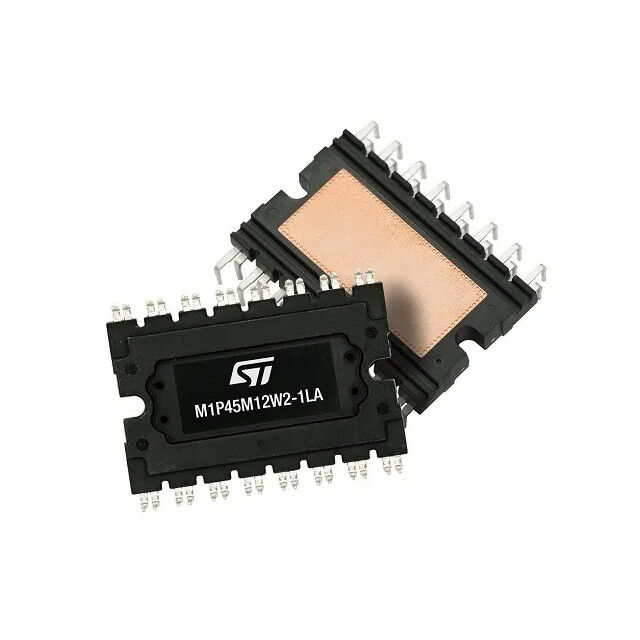

STGSH50M120D
STMicroelectronics
Package: Cut Tape (CT)
Description: TRENCH GATE FIELD-STOP, 1200 V,
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Input | Standard |
|---|---|
| IGBT Type | - |
| Part Status | Active |
| Power - Max | 536 W |
| Configuration | Half Bridge |
| Mounting Type | Surface Mount |
| NTC Thermistor | No |
| Package / Case | 9-PowerSMD |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Supplier Device Package | 9-ACEPACK SMIT |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 50A |
| Current - Collector (Ic) (Max) | 69 A |
| Input Capacitance (Cies) @ Vce | 3152 pF @ 25 V |
| Current - Collector Cutoff (Max) | 25 μA |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
