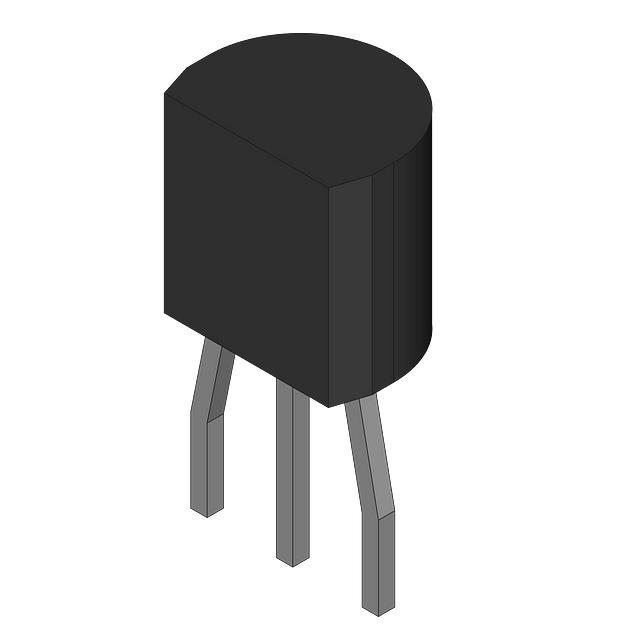

SS9018FBU
onsemi
Package: Bulk
Description: RF TRANS NPN 15V 1.1GHZ TO-92-3
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Gain | - |
|---|---|
| Part Status | Active |
| Power - Max | 400mW |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Frequency - Transition | 1.1GHz |
| Supplier Device Package | TO-92-3 |
| Noise Figure (dB Typ @ f) | - |
| Current - Collector (Ic) (Max) | 50mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 54 @ 1mA, 5V |
| Voltage - Collector Emitter Breakdown (Max) | 15V |
