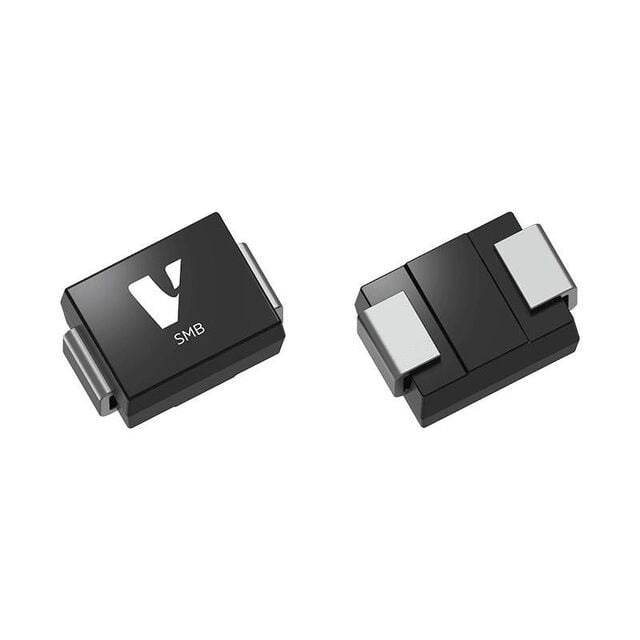

SK515B
VIITOR SEMICONDUCTOR CO., LTD
Package: Tape & Reel (TR)
Description: Schottky, 5A, 150V, SMB, Automot
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | Automotive |
|---|---|
| Speed | Fast Recovery =< 500ns, > 5A (Io) |
| Technology | Schottky |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMB) |
| Current - Reverse Leakage @ Vr | 1 mA @ 150 V |
| Voltage - DC Reverse (Vr) (Max) | 150 V |
| Current - Average Rectified (Io) | 5A |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - Forward (Vf) (Max) @ If | 0.9 V @ 5 A |
