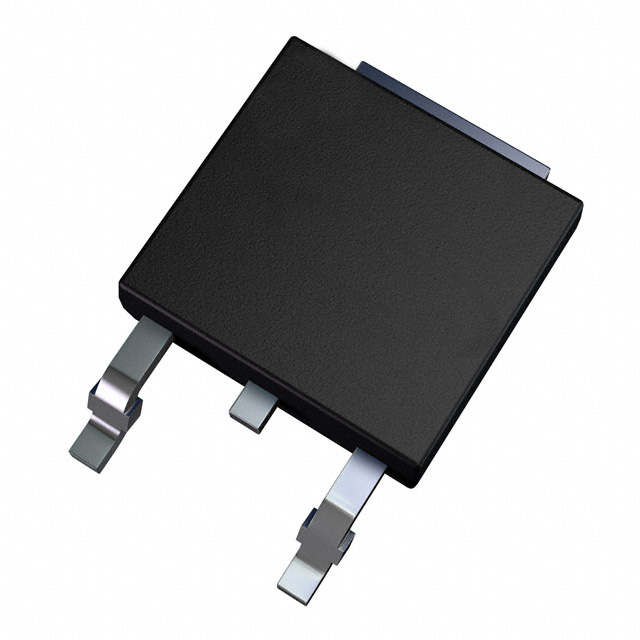

SJ6012D1TP
IXYS
Package: Tube
Description: 12 AMP HIGH TEMPERATURE STANDARD
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| SCR Type | Standard Recovery |
|---|---|
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Voltage - Off State | 600 V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | TO-252AA |
| Current - Hold (Ih) (Max) | 15 mA |
| Current - Off State (Max) | 10 μA |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - Gate Trigger (Igt) (Max) | 6 mA |
| Current - On State (It (AV)) (Max) | 7.6 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - On State (It (RMS)) (Max) | 12 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 100A, 120A |
