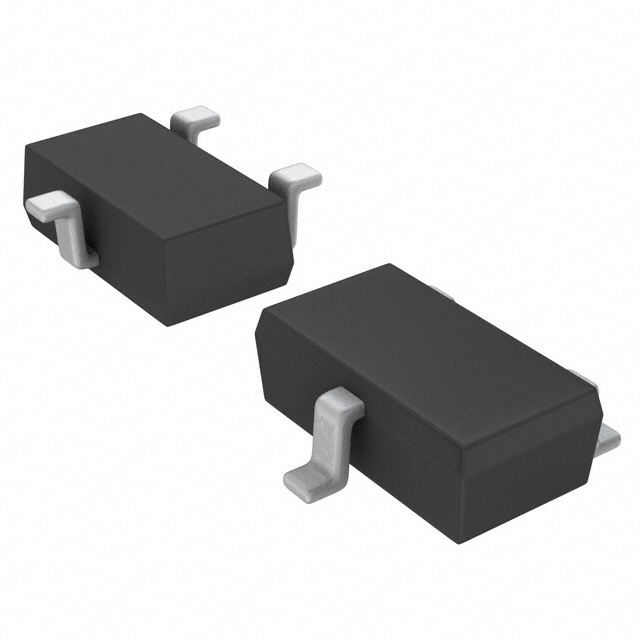

RQ5G040ATTCL
ROHM Semiconductor
Package: Cut Tape (CT)
Description: PCH -40V -4.0A, SOT-346T, SMALL
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| FET Type | P-Channel |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | SC-96 |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Operating Temperature | 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 46mOhm @ 4A, 10V |
| Power Dissipation (Max) | 700mW (Ta) |
| Supplier Device Package | TSMT3 |
| Gate Charge (Qg) (Max) @ Vgs | 16.8 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 40 V |
| Input Capacitance (Ciss) (Max) @ Vds | 820 pF @ 20 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) |
