RH7L03BBKFRATCB
ROHM Semiconductor
Package: Cut Tape (CT)
Description: NCH 60V 35A, DFN3333T8LSAB, POWE
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | Automotive |
|---|---|
| FET Type | N-Channel |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |

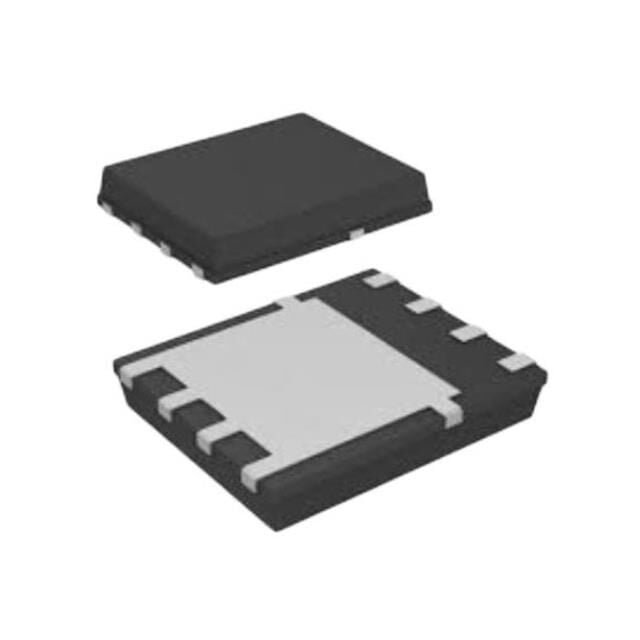

| Package / Case | 8-PowerTDFN |
| Vgs(th) (Max) @ Id | 2.5V @ 70μA |
| Operating Temperature | 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 26.4mOhm @ 20A, 10V |
| Power Dissipation (Max) | 33W (Tc) |
| Supplier Device Package | DFN3333T8LSAB |
| Gate Charge (Qg) (Max) @ Vgs | 6.8 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 60 V |
| Input Capacitance (Ciss) (Max) @ Vds | 375 pF @ 30 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Current - Continuous Drain (Id) @ 25°C | 35A (Ta) |
