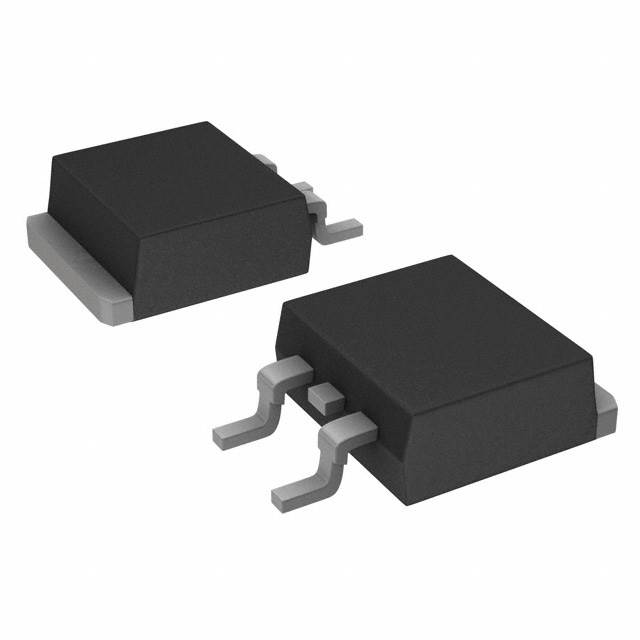

RGT20NL65GTL
ROHM Semiconductor
Package: Cut Tape (CT)
Description: IGBT TRENCH FS 650V 20A TO-263AB
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| IGBT Type | Trench Field Stop |
|---|---|
| Input Type | Standard |
| Gate Charge | 22 nC |
| Part Status | Active |
| Power - Max | 106 W |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Test Condition | 400V, 10A, 10Ohm, 15V |
| Switching Energy | - |
| Td (on/off) @ 25°C | 12ns/32ns |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Supplier Device Package | TO-263AB |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 10A |
| Current - Collector (Ic) (Max) | 20 A |
| Current - Collector Pulsed (Icm) | 30 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
