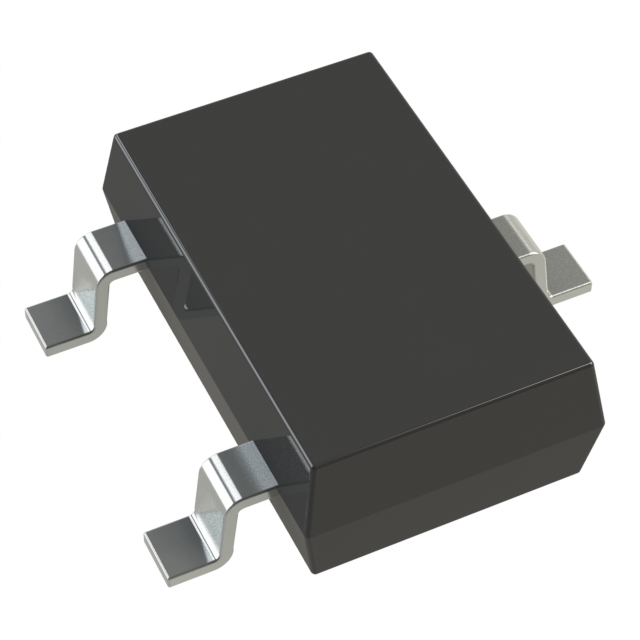

NSVMMBD1504ALT1G
onsemi
Package: Cut Tape (CT)
Description: HIGH CONDUCTANCE LOW LEAKAGE DIO
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | Automotive |
|---|---|
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Standard |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Diode Configuration | 1 Pair Common Cathode |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Current - Reverse Leakage @ Vr | 10 nA @ 180 V |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Current - Average Rectified (Io) (per Diode) | 200mA |
