NGW75T65M3DFPQ
Nexperia USA Inc.
Package: Tube
Description: NGW75T65M3DFP/SOT429-2/TO247-3
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| IGBT Type | Trench Field Stop |
| Input Type | Standard |
| Gate Charge | 262 nC |
| Part Status | Active |
| Power - Max | 529 W |
| Mounting Type | Through Hole |
| Qualification | - |

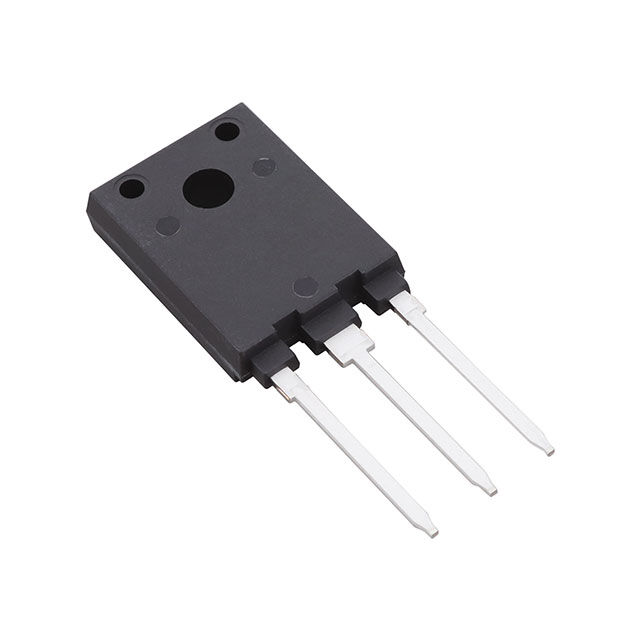

| Package / Case | TO-247-3 |
| Test Condition | 400V, 75A, 10Ohm, 15V |
| Switching Energy | 2.79mJ (on), 1.39mJ (off) |
| Td (on/off) @ 25°C | 44ns/305ns |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Supplier Device Package | TO-247-3L |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 75A |
| Reverse Recovery Time (trr) | 124 ns |
| Current - Collector (Ic) (Max) | 80 A |
| Current - Collector Pulsed (Icm) | 225 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
