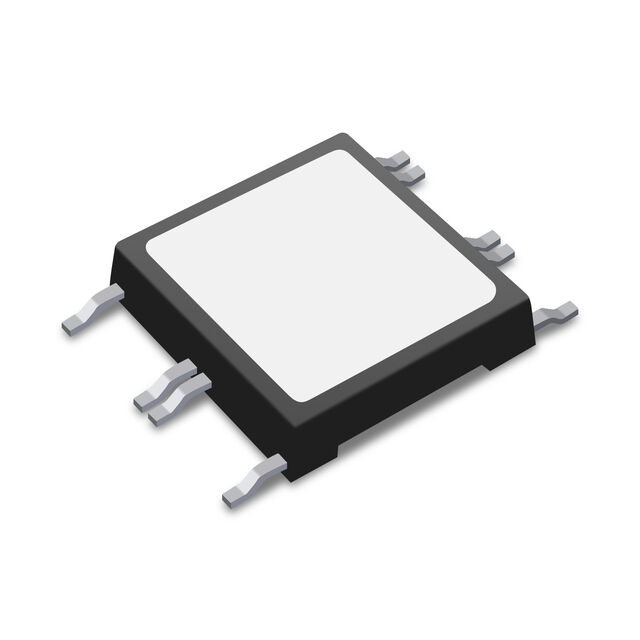

MMIX4G20N250
IXYS
Package: Tube
Description: IGBT F BRIDGE 2500V 23A 24SMPD
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Input | Standard |
|---|---|
| IGBT Type | - |
| Part Status | Active |
| Power - Max | 100 W |
| Configuration | Full Bridge |
| Mounting Type | Surface Mount |
| NTC Thermistor | No |
| Package / Case | 24-SMD Module, 9 Leads |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Supplier Device Package | 24-SMPD |
| Vce(on) (Max) @ Vge, Ic | 3.1V @ 15V, 20A |
| Current - Collector (Ic) (Max) | 23 A |
| Input Capacitance (Cies) @ Vce | 1.19 nF @ 15 V |
| Current - Collector Cutoff (Max) | 10 μA |
| Voltage - Collector Emitter Breakdown (Max) | 2500 V |
