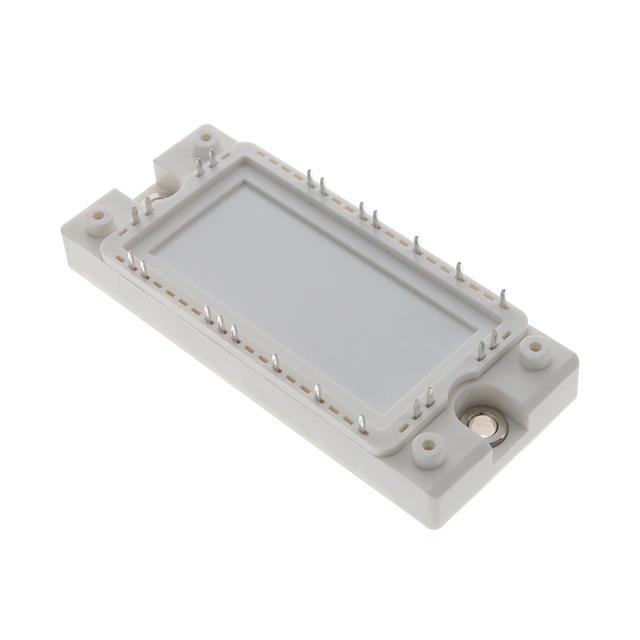

MIP50R12E1ATN-BP
MCC (Micro Commercial Components)
Package: Bulk
Description: IGBT MODULES 1200V 50A, E1A
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Input | Three Phase Bridge Rectifier |
|---|---|
| IGBT Type | - |
| Part Status | Active |
| Power - Max | 288 W |
| Configuration | Three Phase Inverter |
| Mounting Type | Chassis Mount |
| NTC Thermistor | Yes |
| Package / Case | Module |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | E1A |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 50A |
| Current - Collector (Ic) (Max) | 50 A |
| Input Capacitance (Cies) @ Vce | 2.6 nF @ 25 V |
| Current - Collector Cutoff (Max) | 1 mA |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
