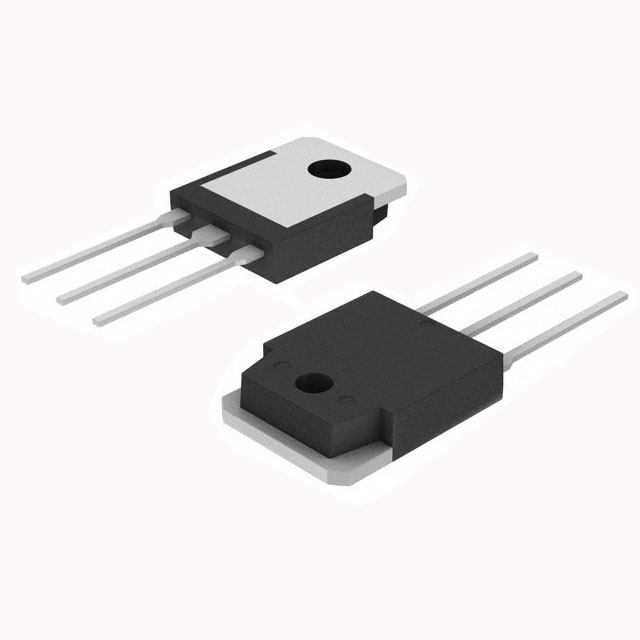

MGF65A4H
Sanken Electric USA Inc.
Package: Bulk
Description: IGBT TRENCH FS 650V 65A TO-3P
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| IGBT Type | Trench Field Stop |
|---|---|
| Input Type | Standard |
| Gate Charge | 75 nC |
| Part Status | Active |
| Power - Max | 288 W |
| Mounting Type | Through Hole |
| Package / Case | TO-3P-3, SC-65-3 |
| Test Condition | 400V, 40A, 10Ohm, 15V |
| Switching Energy | 700μJ (on), 600μJ (off) |
| Td (on/off) @ 25°C | 40ns/100ns |
| Operating Temperature | 175°C (TJ) |
| Supplier Device Package | TO-3P |
| Vce(on) (Max) @ Vge, Ic | 2.37V @ 15V, 40A |
| Reverse Recovery Time (trr) | 50 ns |
| Current - Collector (Ic) (Max) | 65 A |
| Current - Collector Pulsed (Icm) | 120 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
