IXYT120N65A5HV
IXYS
Package: Bulk
Description: IGBT TRENCH FS 650V 290A TO268HV
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| IGBT Type | Trench Field Stop |
| Input Type | Standard |
| Gate Charge | 314 nC |
| Part Status | Active |
| Power - Max | 830 W |
| Mounting Type | Surface Mount |
| Qualification | - |

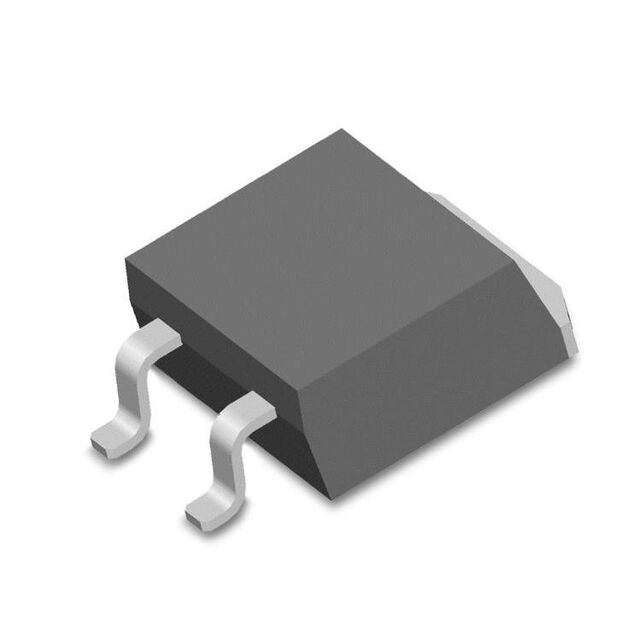

| Package / Case | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA |
| Test Condition | 400V, 60A, 3Ohm, 15V |
| Switching Energy | 2.46mJ (on), 3.55mJ (off) |
| Td (on/off) @ 25°C | 46ns/390ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Supplier Device Package | TO-268HV (IXYT) |
| Vce(on) (Max) @ Vge, Ic | 1.45V @ 15V, 75A |
| Current - Collector (Ic) (Max) | 290 A |
| Current - Collector Pulsed (Icm) | 790 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
