IFN160CST3
InterFET
Package: Strip
Description: JFET N-Channel -50V Low Ciss
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| FET Type | N-Channel |
|---|---|
| Part Status | Active |
| Power - Max | 350 mW |
| Mounting Type | Surface Mount |

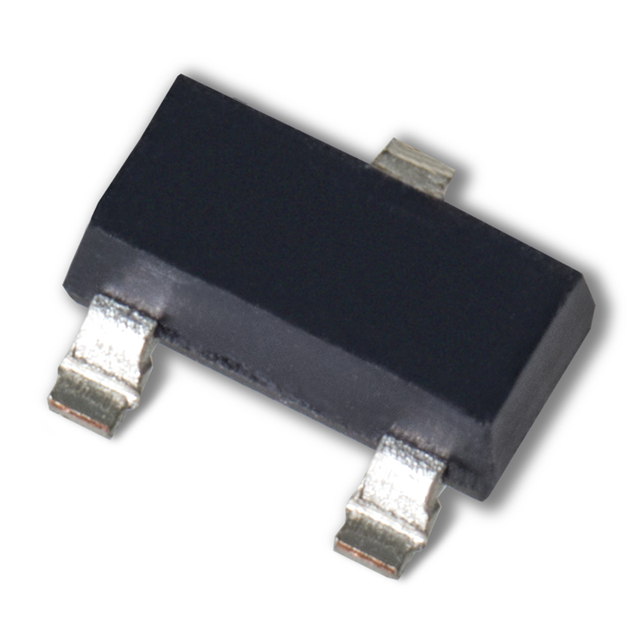

| Package / Case | SOT-23-3 |
| Resistance - RDS(On) | 290 Ohms |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Supplier Device Package | SOT-23-3 |
| Drain to Source Voltage (Vdss) | 50 V |
| Voltage - Cutoff (VGS off) @ Id | 1.3 V @ 10 μA |
| Current - Drain (Idss) @ Vds (Vgs=0) | 6 mA @ 5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 4pF @ 10V |
