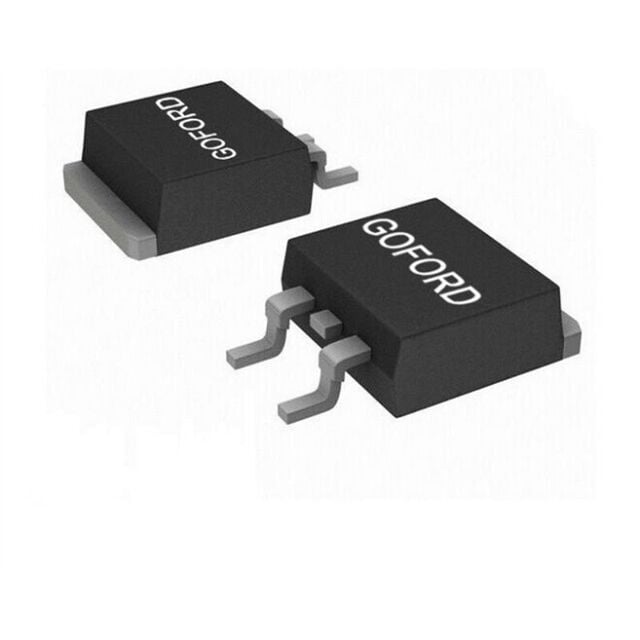

GT035N12M
Goford Semiconductor
Package: Cut Tape (CT)
Description: MOSFET N-CH 120V 180A 230W TO-26
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| FET Type | N-Channel |
|---|---|
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerSFN |
| Vgs(th) (Max) @ Id | 4V @ 250μA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 3.8mOhm @ 50A, 10V |
| Power Dissipation (Max) | 230W (Tc) |
| Supplier Device Package | TOLL-8L |
| Gate Charge (Qg) (Max) @ Vgs | 126 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 120 V |
| Input Capacitance (Ciss) (Max) @ Vds | 8335 pF @ 60 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Current - Continuous Drain (Id) @ 25°C | 180A (Tc) |
