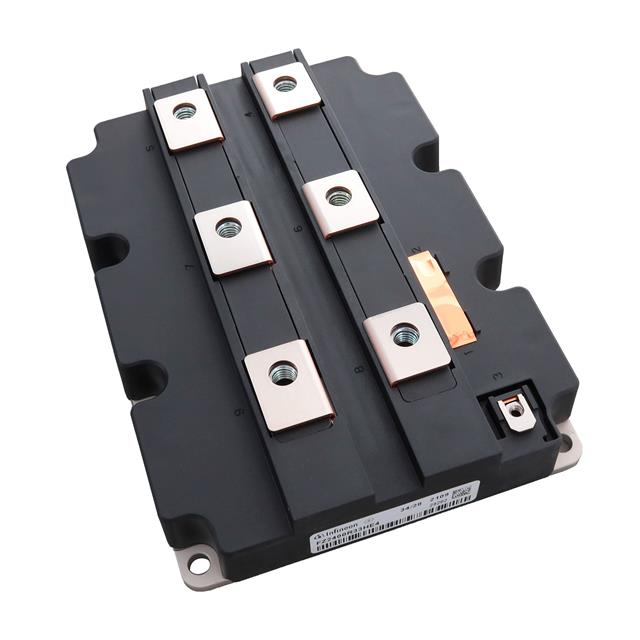

FZ2400R33HE4BPSA1
Infineon Technologies
Package: Tray
Description: HV B SINGLE SWITCH POWER MODULES
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Input | Standard |
|---|---|
| IGBT Type | Trench Field Stop |
| Part Status | Active |
| Power - Max | 5400000 W |
| Configuration | Single Switch |
| Mounting Type | Chassis Mount |
| NTC Thermistor | No |
| Package / Case | Module |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | AG-IHVB190-3 |
| Vce(on) (Max) @ Vge, Ic | 2.65V @ 15V, 2.4kA |
| Current - Collector (Ic) (Max) | 2400 A |
| Input Capacitance (Cies) @ Vce | 280 nF @ 25 V |
| Current - Collector Cutoff (Max) | 5 mA |
| Voltage - Collector Emitter Breakdown (Max) | 3300 V |
