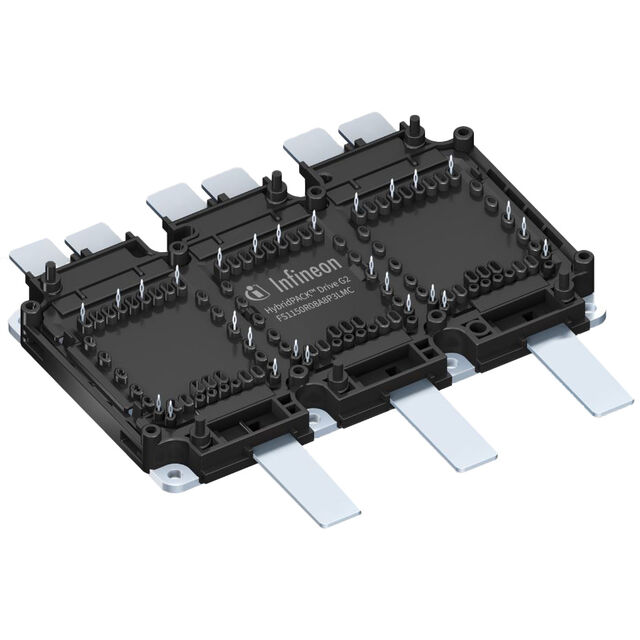

FS1150R08A8P3LMCHPSA1
Infineon Technologies
Package: Box
Description: FS1150R08A8P3LMCHPSA1
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Input | Standard |
|---|---|
| IGBT Type | - |
| Part Status | Active |
| Power - Max | 1 kW |
| Configuration | Three Phase Inverter |
| Mounting Type | Chassis Mount |
| NTC Thermistor | No |
| Package / Case | Module |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Supplier Device Package | - |
| Vce(on) (Max) @ Vge, Ic | 1.21V @ 15V, 600A |
| Current - Collector (Ic) (Max) | 1.15 kA |
| Input Capacitance (Cies) @ Vce | 60800 pF @ 50 V |
| Current - Collector Cutoff (Max) | 1 mA |
| Voltage - Collector Emitter Breakdown (Max) | 750 V |
