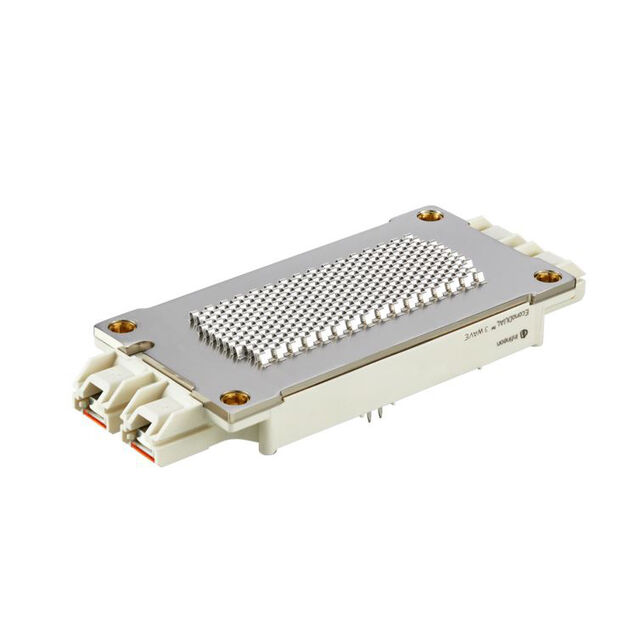

FF900R12ME7WBPSA1
Infineon Technologies
Package: Tray
Description: FF900R12ME7WBPSA1
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Input | Standard |
|---|---|
| IGBT Type | Trench Field Stop |
| Part Status | Active |
| Power - Max | 20 mW |
| Configuration | Half Bridge Inverter |
| Mounting Type | Chassis Mount |
| NTC Thermistor | Yes |
| Package / Case | Module |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Supplier Device Package | - |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 900A |
| Current - Collector (Ic) (Max) | 890 A |
| Input Capacitance (Cies) @ Vce | 122000 pF @ 25 V |
| Current - Collector Cutoff (Max) | 100 μA |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
