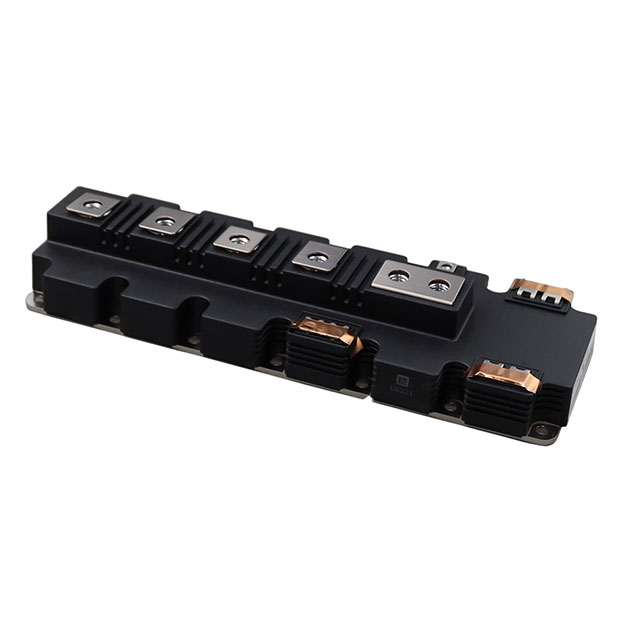

FF1500R17IP5RBPSA1
Infineon Technologies
Package: Tray
Description: PP IHM I XHP 1 7KV AG-PRIME3-5
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Input | Standard |
|---|---|
| IGBT Type | Trench Field Stop |
| Part Status | Active |
| Configuration | 2 Independent |
| Mounting Type | Chassis Mount |
| NTC Thermistor | Yes |
| Package / Case | Module |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Supplier Device Package | Module |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 1.5kA |
| Current - Collector (Ic) (Max) | 1500 A |
| Input Capacitance (Cies) @ Vce | 88 nF @ 25 V |
| Current - Collector Cutoff (Max) | 10 mA |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
