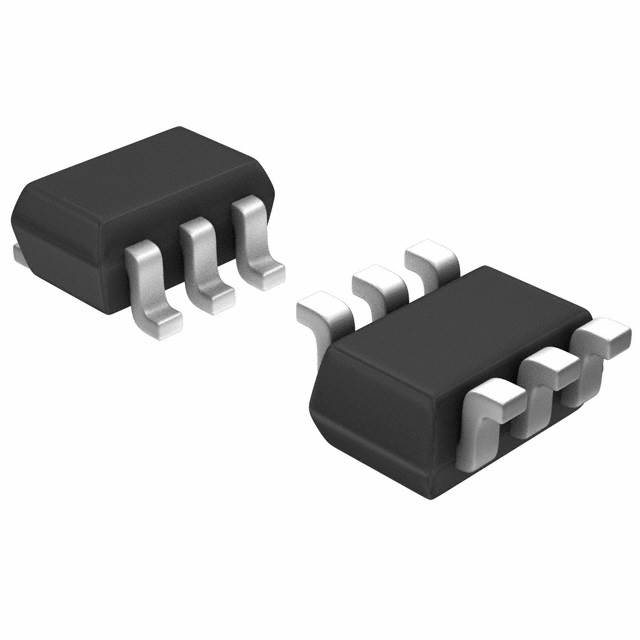

DMC506E20R
Panasonic Electronic Components
Package: Tape & Reel (TR)
Description: RF TRANS 2 NPN 20V 650MHZ SOT363
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Gain | 24dB |
|---|---|
| Part Status | Discontinued at |
| Power - Max | 150mW |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Transistor Type | 2 NPN (Dual) |
| Operating Temperature | - |
| Frequency - Transition | 650MHz |
| Supplier Device Package | SOT-363 |
| Noise Figure (dB Typ @ f) | 3.3dB @ 100MHz |
| Current - Collector (Ic) (Max) | 15mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 65 @ 1mA, 6V |
| Voltage - Collector Emitter Breakdown (Max) | 20V |
