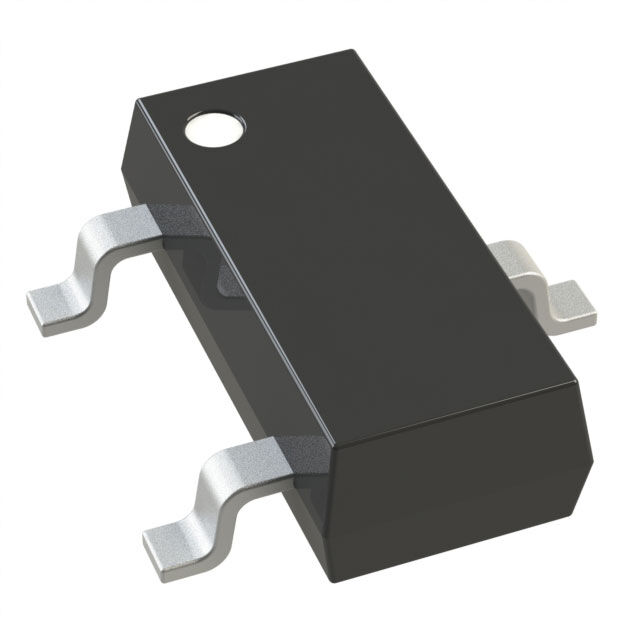

BFU520WF
NXP USA Inc.
Package: Cut Tape (CT)
Description: RF TRANS NPN 12V 10GHZ SC-70
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Gain | 13dB |
|---|---|
| Part Status | Last Time Buy |
| Power - Max | 450mW |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Transistor Type | NPN |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Frequency - Transition | 10GHz |
| Supplier Device Package | SC-70 |
| Noise Figure (dB Typ @ f) | 1dB @ 1.8GHz |
| Current - Collector (Ic) (Max) | 30mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 5mA, 8V |
| Voltage - Collector Emitter Breakdown (Max) | 12V |
