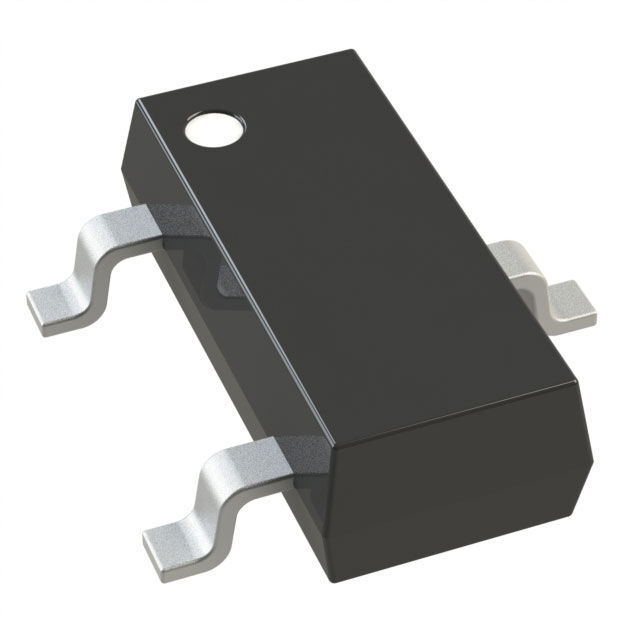

BFS25A,115
NXP Semiconductors
Package: Bulk
Description: RF TRANS NPN 5V 5GHZ SC-70
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Gain | - |
|---|---|
| Part Status | Obsolete |
| Power - Max | 32mW |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Transistor Type | NPN |
| Operating Temperature | 175°C (TJ) |
| Frequency - Transition | 5GHz |
| Supplier Device Package | SC-70 |
| Noise Figure (dB Typ @ f) | 1.8dB ~ 2dB @ 1GHz |
| Current - Collector (Ic) (Max) | 6.5mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 500μA, 1V |
| Voltage - Collector Emitter Breakdown (Max) | 5V |
