BFR380F
Shenzhen Slkormicro Semicon Co., Ltd.
Package: Cut Tape (CT)
Description: RF TRANS NPN 6V 14GHZ SOT-323
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Gain | 9dB |
|---|---|
| Grade | - |
| Part Status | Active |
| Power - Max | 380mW |
| Mounting Type | Surface Mount |
| Qualification | - |

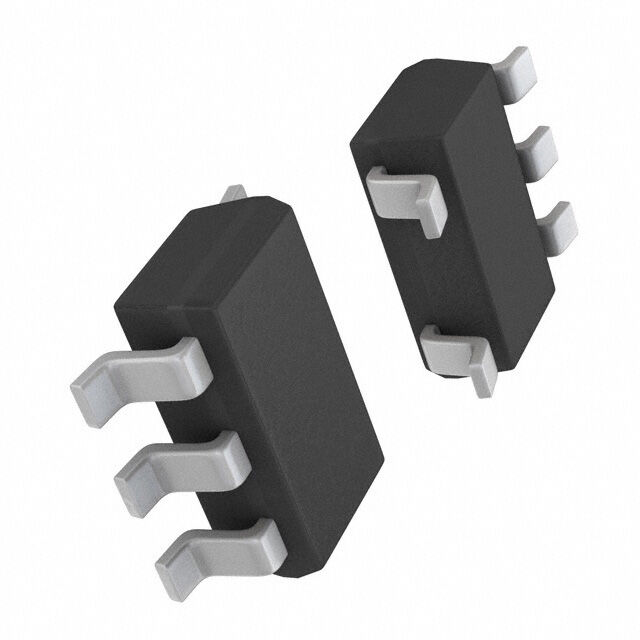

| Package / Case | SC-70, SOT-323 |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Frequency - Transition | 14GHz |
| Supplier Device Package | SOT-323 |
| Noise Figure (dB Typ @ f) | 1.1dB @ 1.8GHz |
| Current - Collector (Ic) (Max) | 80mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 40mA, 3V |
| Voltage - Collector Emitter Breakdown (Max) | 6V |
