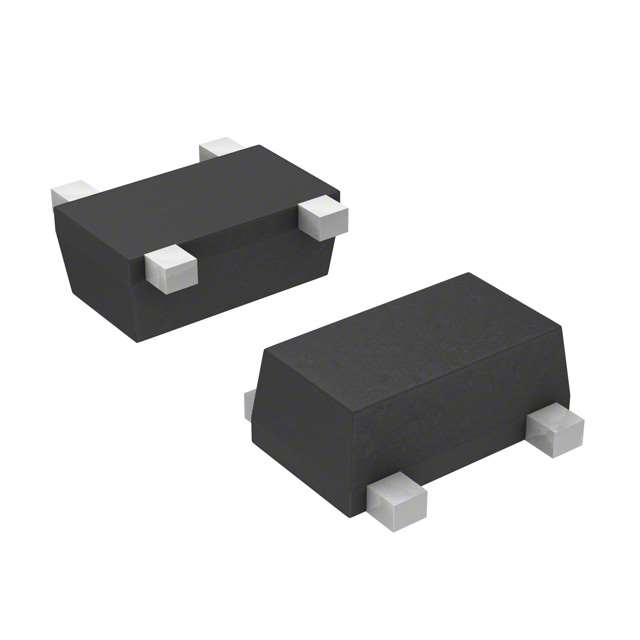

BFP405FH6327XTSA1
Infineon Technologies
Package: Cut Tape (CT)
Description: RF TRANS NPN 4.5V 25GHZ 4-TSFP
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Gain | 22.5dB |
|---|---|
| Part Status | Last Time Buy |
| Power - Max | 75mW |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Flat Leads |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Frequency - Transition | 25GHz |
| Supplier Device Package | 4-TSFP |
| Noise Figure (dB Typ @ f) | 1.25dB @ 1.8GHz |
| Current - Collector (Ic) (Max) | 25mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 5mA, 4V |
| Voltage - Collector Emitter Breakdown (Max) | 4.5V |
