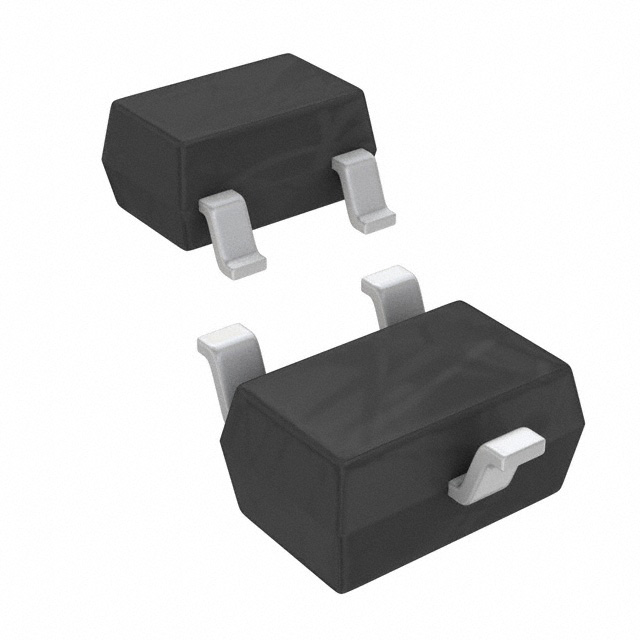

BAV99FMFHT106
ROHM Semiconductor
Package: Cut Tape (CT)
Description: DIODE ARRAY GP 80V 215MA SOT-323
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | Automotive |
|---|---|
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Standard |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | SC-70, SOT-323 |
| Diode Configuration | 1 Pair Series Connection |
| Supplier Device Package | SOT-323 |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 100 nA @ 80 V |
| Voltage - DC Reverse (Vr) (Max) | 80 V |
| Operating Temperature - Junction | 150°C |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Current - Average Rectified (Io) (per Diode) | 215mA |
