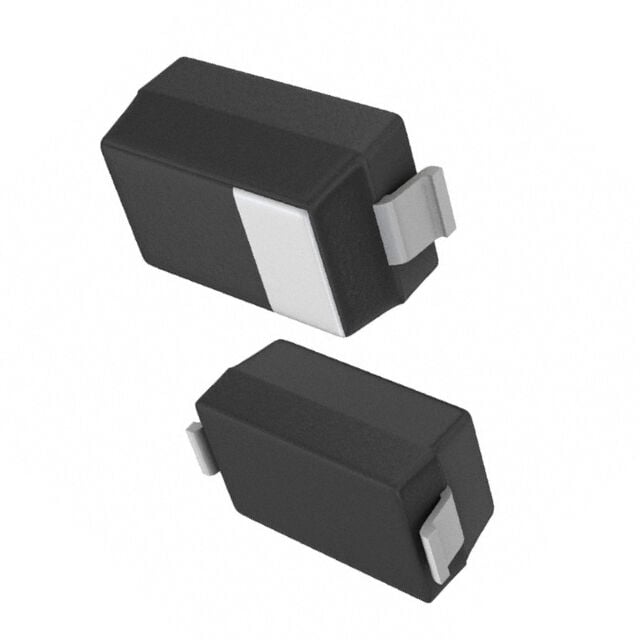

BAV20W
Shenzhen Slkormicro Semicon Co., Ltd.
Package: Cut Tape (CT)
Description: 150V 1.25V 50NS 200MA SOD-123
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Standard |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | SOD-123 |
| Capacitance @ Vr, F | 5pF @ 0V, 1MHz |
| Supplier Device Package | SOD-123 |
| Reverse Recovery Time (trr) | 50 ns |
| Current - Reverse Leakage @ Vr | 100 nA @ 150 V |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) | 200mA |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 200 mA |
