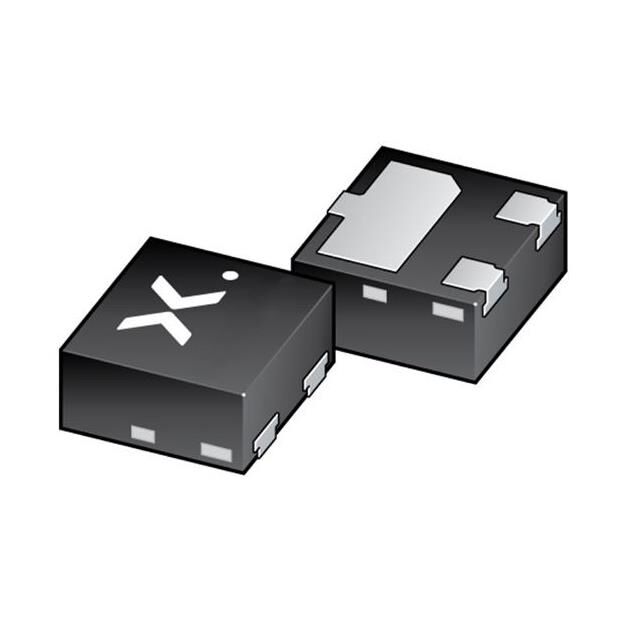

BAV199QCZ
Nexperia USA Inc.
Package: Tape & Reel (TR)
Description: DIODE ARR GP 75V 215MA DFN1412D3
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Part Status | Active |
| Mounting Type | Surface Mount, Wettable Flank |
| Qualification | - |
| Package / Case | 3-XDFN Exposed Pad |
| Diode Configuration | 1 Pair Series Connection |
| Supplier Device Package | DFN1412D-3 |
| Reverse Recovery Time (trr) | 3 μs |
| Current - Reverse Leakage @ Vr | 5 nA @ 75 V |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Operating Temperature - Junction | 150°C |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Current - Average Rectified (Io) (per Diode) | 215mA |
