BAV170WT-TP
MCC (Micro Commercial Components)
Package: Tape & Reel (TR)
Description: IC
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Qualification | - |

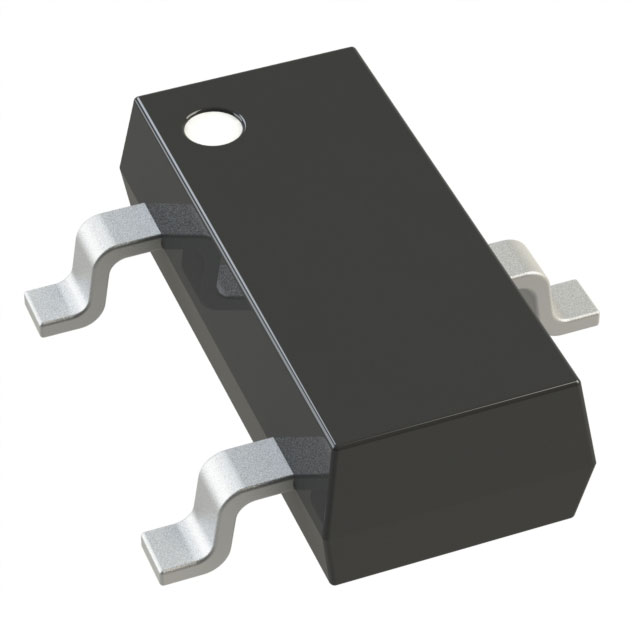

| Package / Case | SC-70, SOT-323 |
| Diode Configuration | 1 Pair Common Cathode |
| Supplier Device Package | SOT-323 |
| Reverse Recovery Time (trr) | 3 μs |
| Current - Reverse Leakage @ Vr | 5 nA @ 75 V |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Current - Average Rectified (Io) (per Diode) | 215mA |
