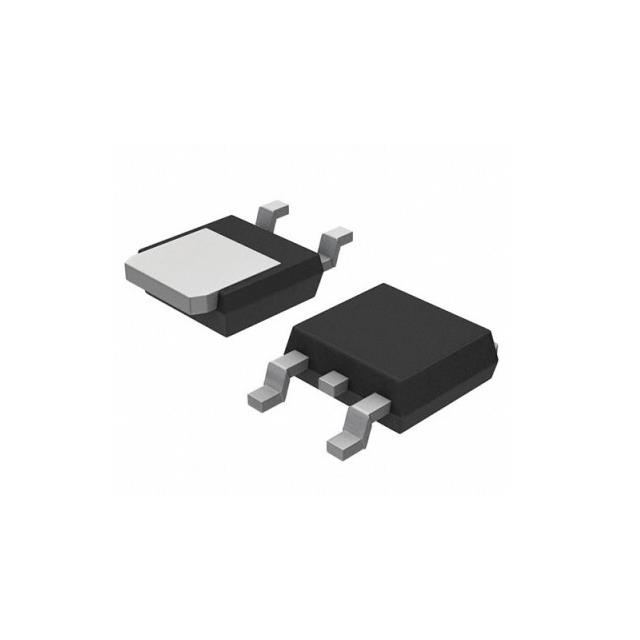

AMD560C
Analog Power Inc.
Package: Tape & Reel (TR)
Description: MOSFET N/P-CH 60V 35A TO252-4
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Active |
| Power - Max | 50W (Tc) |
| Configuration | N and P-Channel |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | TO-252-5, DPAK (4 Leads + Tab), TO-252AD |
| Vgs(th) (Max) @ Id | 1V @ 250μA |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 24mOhm @ 20A, 10V, 85mOhm @ 10A, 10V |
| Supplier Device Package | TO-252-4 |
| Gate Charge (Qg) (Max) @ Vgs | 9nC @ 4.5V, 10nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 60V |
| Input Capacitance (Ciss) (Max) @ Vds | 1422pF @ 15V, 1143pF @ 15V |
| Current - Continuous Drain (Id) @ 25°C | 35A (Tc), 20A (Tc) |
