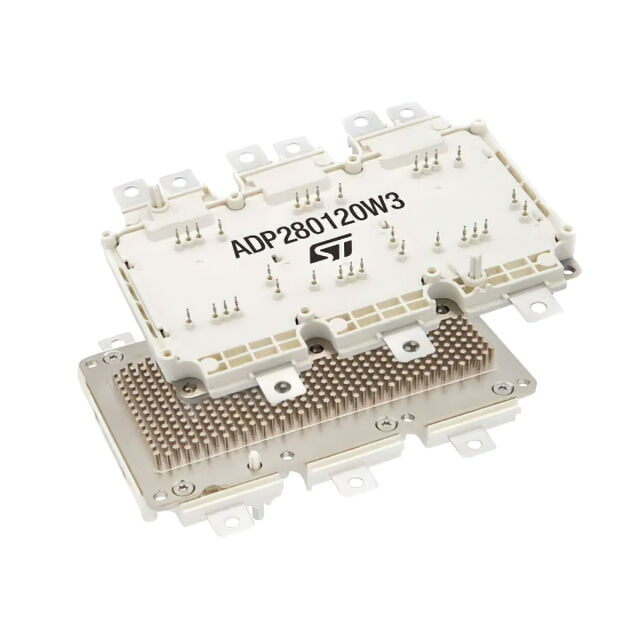

ADP280120W3
STMicroelectronics
Package: Tray
Description: MOSFET 6N-CH 1200V 275A ACEPACK
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| Technology | Silicon Carbide (SiC) |
| FET Feature | - |
| Part Status | Active |
| Power - Max | 549W |
| Configuration | 6 N-Channel |
| Mounting Type | Chassis Mount |
| Qualification | - |
| Package / Case | Module |
| Vgs(th) (Max) @ Id | 4.4V @ 30mA |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 5.05mOhm @ 280A, 18V |
| Supplier Device Package | ACEPACK |
| Gate Charge (Qg) (Max) @ Vgs | 629nC @ 18V |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Input Capacitance (Ciss) (Max) @ Vds | 18710pF @ 800V |
| Current - Continuous Drain (Id) @ 25°C | 275A (Tj) |
