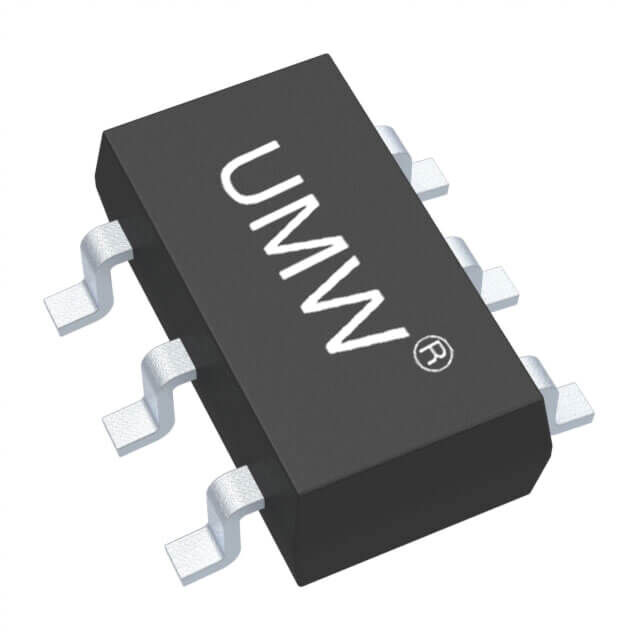

8205A
UMW
Package: Cut Tape (CT)
Description: MOSFET 2N-CH 20V 5A SOT23-6
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Grade | - |
|---|---|
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Active |
| Power - Max | 830mW (Ta) |
| Configuration | 2 N-Channel, Common Drain |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | SOT-23-6 |
| Vgs(th) (Max) @ Id | 1.2V @ 250μA |
| Operating Temperature | 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 27mOhm @ 5A, 4.5V |
| Supplier Device Package | SOT-23-6 |
| Gate Charge (Qg) (Max) @ Vgs | 23nC @ 5V |
| Drain to Source Voltage (Vdss) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 630pF @ 10V |
| Current - Continuous Drain (Id) @ 25°C | 5A |
