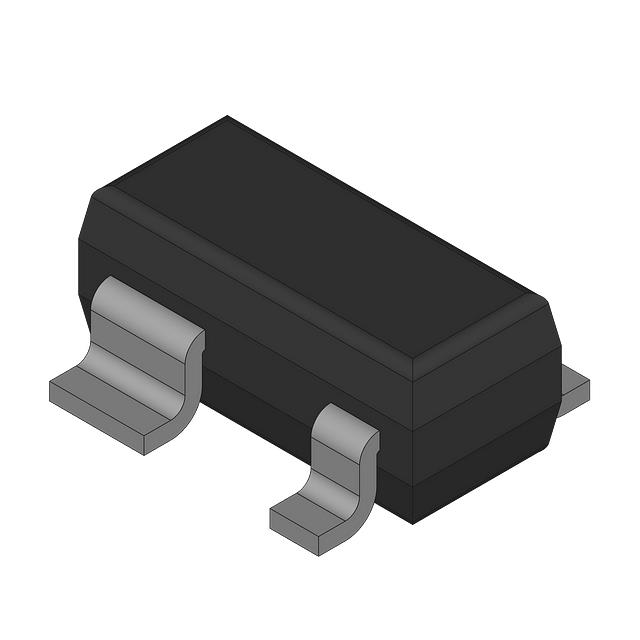

2SC5065-Y(TE85L,F)
Toshiba Semiconductor and Storage
Package: Tape & Reel (TR)
Description: RF TRANS NPN 12V 7GHZ SC-70
Need More Information?
For additional product parameters, user manuals, or technical support, please contact our sales team.
Product Specifications
| Gain | 12dB ~ 17dB |
|---|---|
| Part Status | Obsolete |
| Power - Max | 100mW |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Transistor Type | NPN |
| Operating Temperature | 125°C (TJ) |
| Frequency - Transition | 7GHz |
| Supplier Device Package | SC-70 |
| Noise Figure (dB Typ @ f) | 1.1dB @ 1GHz |
| Current - Collector (Ic) (Max) | 30mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 10mA, 5V |
| Voltage - Collector Emitter Breakdown (Max) | 12V |
